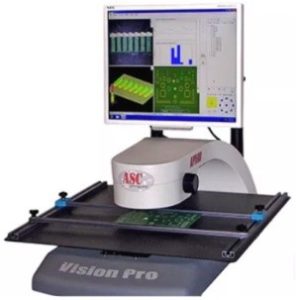

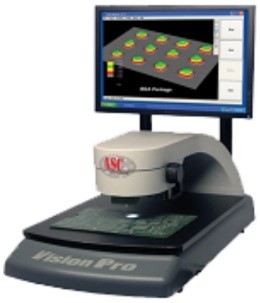

VisionPro M series (Available models: SP3D, VisionPro M300 & VisionPro M500)

The VisionPro M series system is sophisticated, true 3D technology coupled with an intuitive Windows OS.  Packaged in a rugged, tabletop (benchtop) platform designed for show, engineered for the most advanced measurement requirements found within the stencil printing process.  Offering a large FOV sensor for better coverage and real-time, integrated SPC run charts and data reports, the VisionPro M series provides exceptional value for the electronics manufacturer concerned with improving production yields.

Key Features & Benefits

• Multiple Sensor Options: SP3D & PSI
• Best in Class Gauge R&R
• Measure Height, Area, Volume, X-Y
• SPC Run Charts/Data Reports
• 3D Profiling – Improved Qualitative Analysis
• High Resolution Color CCD camera

• Specifications	SP3D	VisionPro M300	VisionPro M500
  Inspection Speed:	60 frames/sec	1 sec FOV 3D	1 sec FOV 3D
  Static Repeatability:	2.5um (0.1mil)	1um (0.04mil)	1um (0.04mil)
  Z Resolution:	2.54um (0.1mil)	1.78um (0.07mil)	0.48um (0.019mil)
  Gauge R&R (±50% tolerance on PCB):	<10%	<10%	<10%
  Height Accuracy on Calibration Tool:	2um (0.8mil)	1um (0.04mil)	1um (0.04mil)
  Min. Paste Deposit Size:	127um (5mil)	51um (2mil)	51um (2mil)
